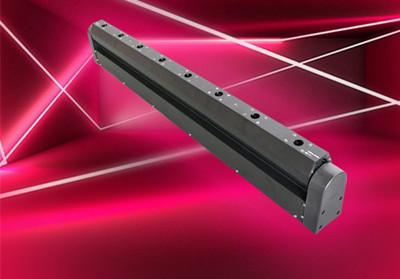

Product Name : DK-Array 500 red green blue 8 head laser
Directions

1.High performance diodes,powerful output,low divergence<1.0mrad(full angle)

2.Larger scan angle,sharp and pure laser beam,excellent heat dissipation

3.Pangolin FB3/FB4 available,control by ILDA,DMX,SD CARD etc.
4.Professional dust-free case design,easy to install and portable
5.Longer life time,used in indoor or outdoor shows.



DK-array 500

Specifications:

Red=637nm 500mw*8pcs

Green=530nm 200mw*8pcs

RGB=R:637nm 500mw G:532nm 100mw             B:445nm 500mw

Divergent Angle:<2.0mrad


DMX Channel:6CH/14CH

Play Mode:Master/Slave,Voice Contol, Automatic,DMX512

Light Source:Coarse spot solid laser source

Turning angle:270 degree

Cooling System: Fan Cooling

L*W*H: 106cm*18cm*8.5cm

Packing with carton:120cm*20cm*10cm Weight:10kg




Controller:Pangolin FB3/FB4 for optional

Scanning:

PT-A30,35kpps,Max scan angle:60 degree

40K, EMS 8000 60K available required

Operation Modes:

Auto,sound active,DMX512Master/slaveILDASD card



L*W*H: 80.4cm*75.4cm*46.8cm

Packing with flight case: 90cm*79cm*51cm Weight:80kg

Lifetime:>5000 hours

Operation Temperature10-35

Cooling wayFan cooling

Protection rating:IP52



Laser safety:

Key switch, Interlock interface.Overload protection on X and Y Galvo for best safeguarding against failure.Mechanical shutter optionally available.



Compliance:  FDA/CDRH, CE, ROHS

Warranty:  1 years after-sale service
