DKE-R315B 14.7mm red laser module with battery

650nm 5mw red laser module
650nm 5mw red laser module
dk-R0315  14.7mm red laser module with battery
Product Name : DKE-R315B 14.7mm red laser module with battery

This focusable red laser module of 14.7mm of diameter, incorporates optic, laser diode, and driver circuit into a solid brass casing, for better heat dissipation.

They complies with European standards CE and RoHS, and with FDA regulations.

Specifications :

Laser Class : class II or IIIa

Wavelength : 635nm, 650nm

Output Power : < 5mW

Operation Voltage : 3V -6VDC

Operation Current : 30mA-50mA

Operation Temp. : -10C to +40C

Optics : arylic lens, adjustable

Divergence : <2.0 mrd

Case Material : Brass

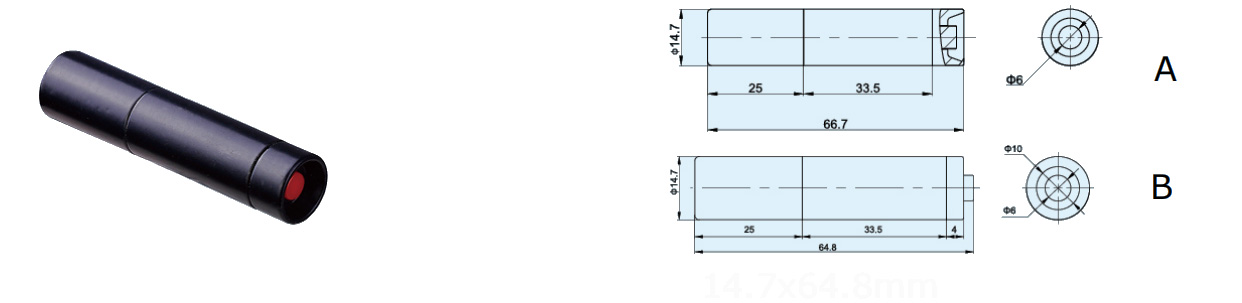

Length : 64.8mm or 66.7mm

Diameter :  14.7mm

Powered by batteries

All the lasers have CE,ROHS,EN-60825,TUV ,EMC and FDA certificate.

DK certificate1.jpg


red laser module.jpg

QC Flow

  1 Professional Power Meter for double check

  2 Qualified professional staff for the beam size/line thickness testing

  3 Strictly surface Inspection before load to the warehouse.


Sent Us Inquiry Now and Pls mention the following points:


1 Wavelength

 2 Output Powder

 3 Housing Dimension

 4 Work distance

 5 Beam size/Line thickness


Product Warranty, Shipping Method and Payment Method:


Warranty: we offer 12 months limited warranty for our products. Damage due to misuse, Ill treatment and unauthorized modifications and repairs are not covered by our warranty.

Payment Method: we usually accept the payment methods include Paypal, Bank Transfer, Western Union, and MoneyGram. Buyer can choose which payment ways that you accept. Paypal is most useful and safe, please don’t refuse Paypal fee when you choose Paypal.

Shipping Method: We provide comprehensive shipping methods, for small quantity orders we ship by DHL AirExpress, or EMS/TNT Express service, it is safe and fast. For large quantity orders we can ship by Air transportation or sea transportation, also we can ship order to buyer’s cargo agent in China. We quoted prices are EXW price, don’t include shipping cost

If you need any information before purchase, you can click our online service, If it is not availabl
